Sapphire Projector lift for small ceiling voids
Sapphire Projector lift for small ceiling voids
Product SKU: SAPPL04
Low stock: 2 left

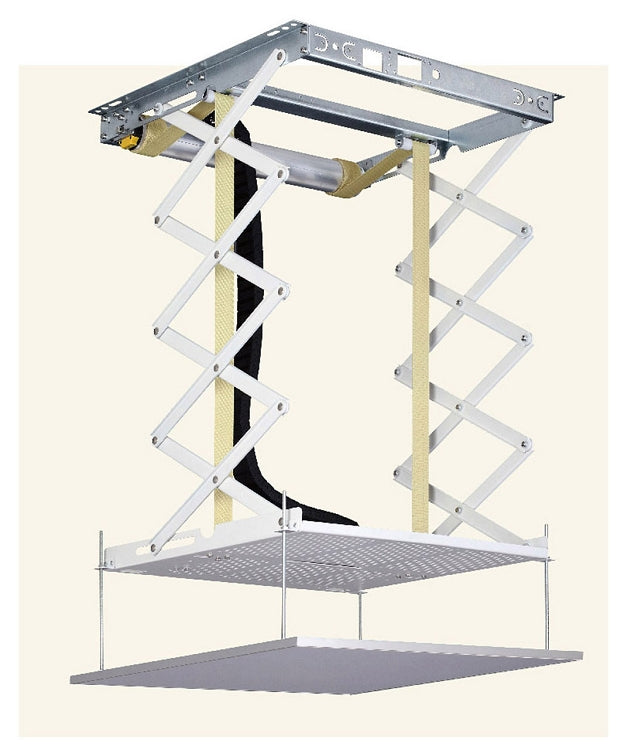

The Sapphire SAPPL04 projector lift is our entry level lift with a drop of up to one metre when fully extended. You can use the motor stops to adjust this and make it stop short if you do not require the full drop.
It comes with:-
It comes with:-
- A full cable management system.
- A 595 x 595 decor panel to fit to the ceiling.
- Threaded rods for the bottom decor panel
- Bolts to fit most projectors and secure to the grid.
- Very small projectors can be fitted inside the mechanism to fit very small spaces.
- Ships with a plug and RFRpack which gives you an up and down switch, Radio remote control, RS232 and contact closure.
- Comes with a three year warranty.
| Model SKU |
Max Drop From Ceiling |
Max Height Req in ceiling (mm) |
Projector inside lift (mm) |
Projector under lift mesh platform (mm) |
Maximum Weight |
| SAPPL04 |
1000mm |
190mm |
300 (W) x 340 (L) x 130 (H) |
500 (W) x 500 (L) x 200 (H) |
25kg' |
Approx external dimensions:
